Mavin EM-T-201 High Power 500 Watt RMS 2 Way Crossover 12 dB Slope

Details

Our Mavin High Performance 2 Way Crossover Rated for 500 Watts RMS, with crossover point at 3500 Hz. at 8 ohms nominal.

Mavin's 12 dB 2 Way Crossover, 8 Ohm Nominal Impedance,

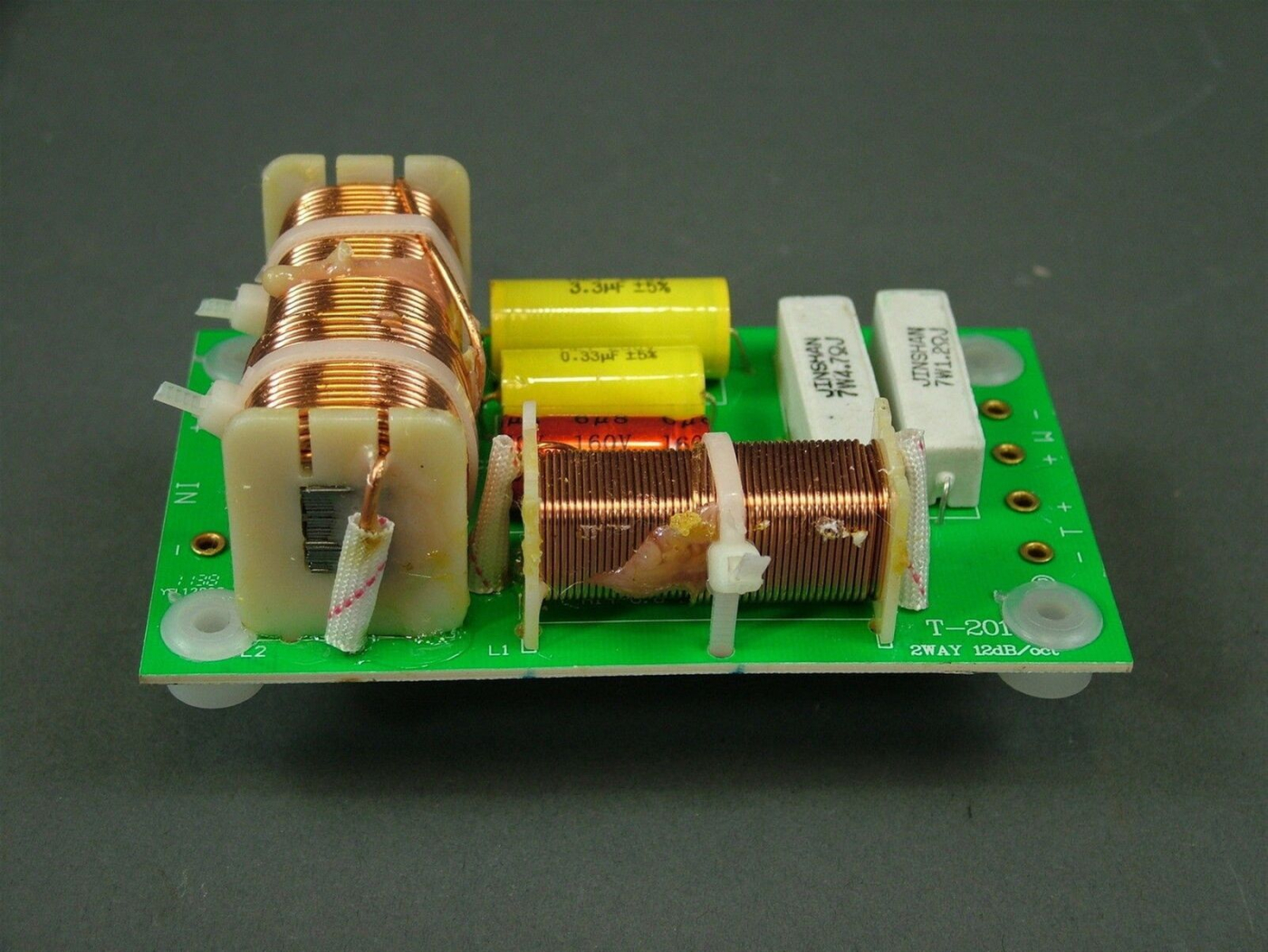

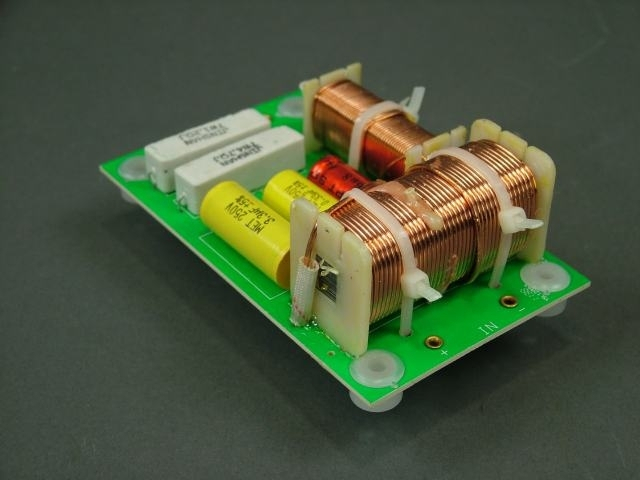

PC Board Design with Plastic Stand Offs,
note that some soldering required to attach the wires to the circuit board.
Price listed is for a Pair of crossovers

Features

• PC Board Design
• 500 Watts RMS Power Rating
• 8 ohm impedance
• Crossover point at 3400 Hz.
• 12 dB Octave Slope
• Size L x W x H 115 x 70 x 37 mm or
• 4 5/8" x 2 3/4" x 1 1/2"
• Suitable for a general 2 way design, look at your Speaker Frequency Response, will work with any speaker size.
• Note that you can use this crossover in a 6 Ohm designs the crossover points move to 5100 Hz.

Note shipping weight is 3 pounds.





Click on an image to Super Size it for a Better Detail View of the item
