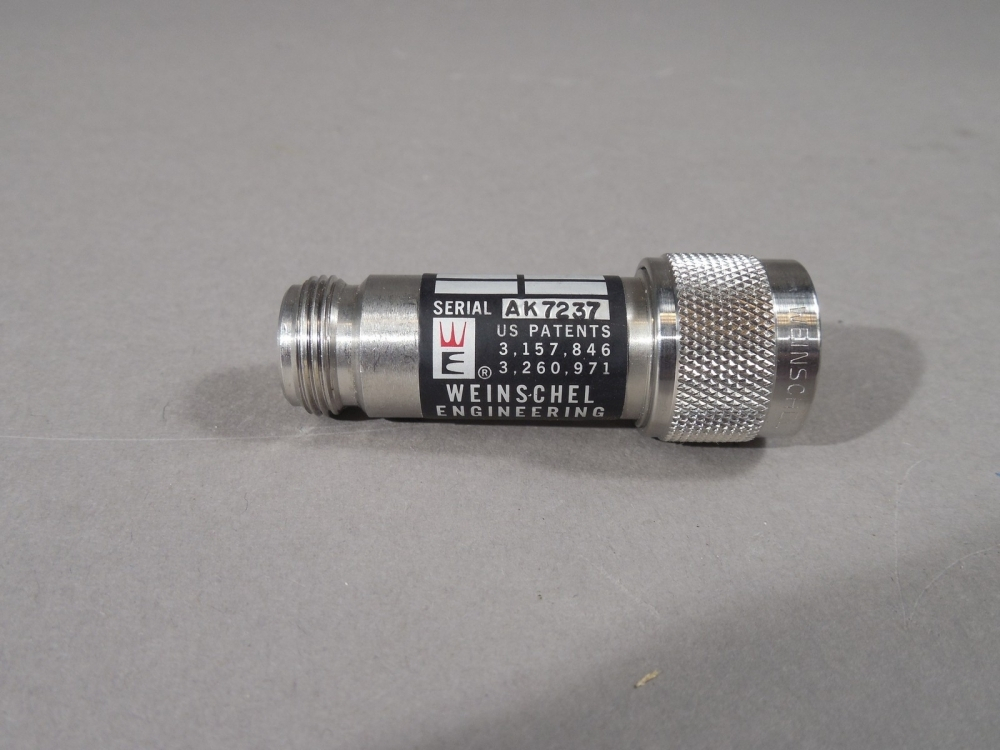

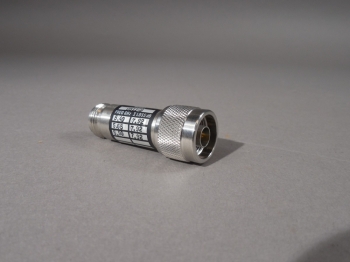

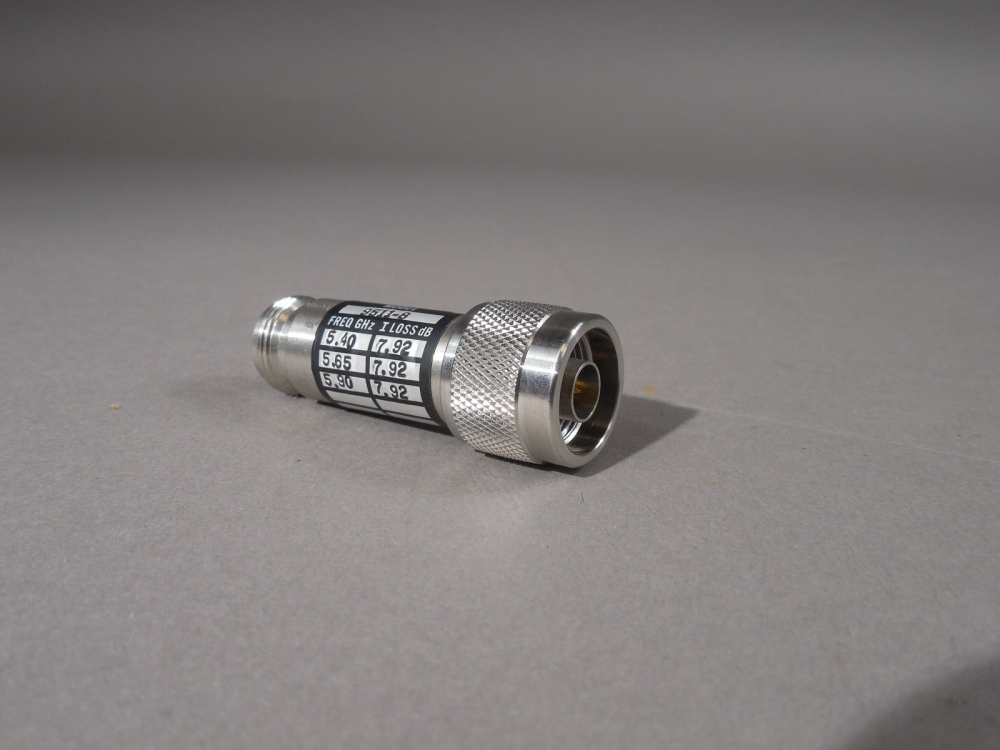

Weinschel 7.92dB Attenuator 9511-8 Fixed 5985-01-096-8171

Details

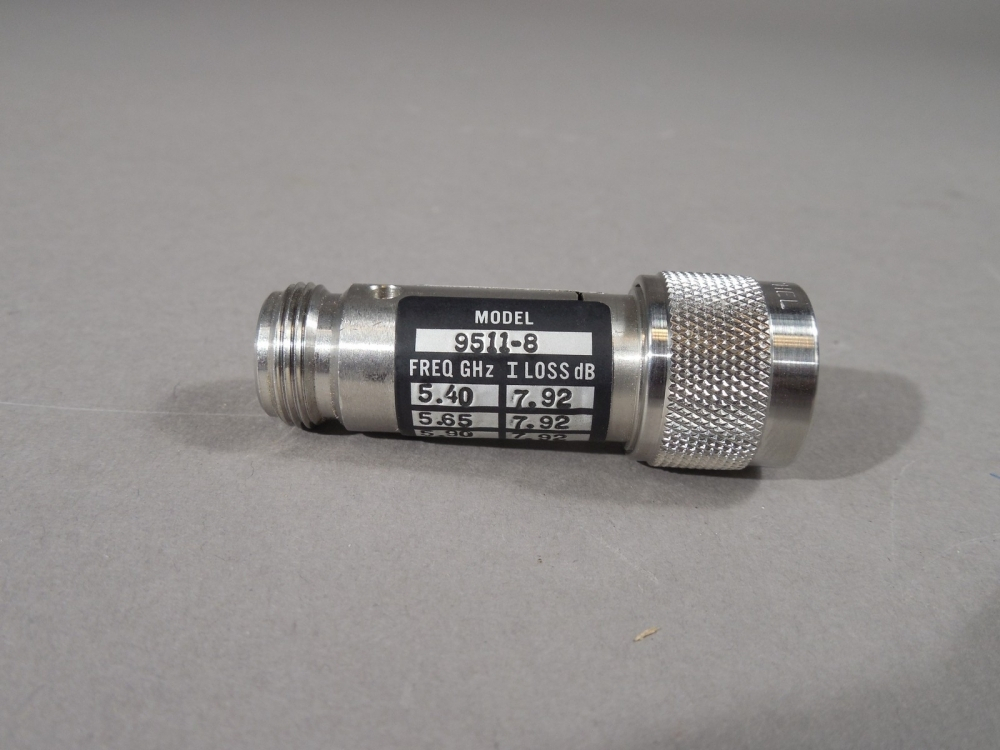

P/N: 9511-8
NSN: 5985-01-096-8171
Application Design Transmission line
Body Material Steel, QQ-S-763, class 302, 303, 304, 305, 310, or 316
Body Style Round, terminal/terminals in opposite surface
Body Surface Treatment Any acceptable
Overall Length 2.180 inches minimum and 2.300 inches maximum
Overall Diameter 0.840 inches maximum
Voltage Standing Wave Ratio 1.20
Input Impedance Rating in Ohms 50.0
Output Impedance Rating in Ohms 50.0
Coaxial Connector Series Designation N
Power Rating 5.0 watts average and 1.0 kilowatts peak
RF Signal Attenuation in Decibels 8.0
Attenuation Accuracy in Decibels -0.22/+0.22
Temperature Sensitivity Attenuation in Decibels 0.0001

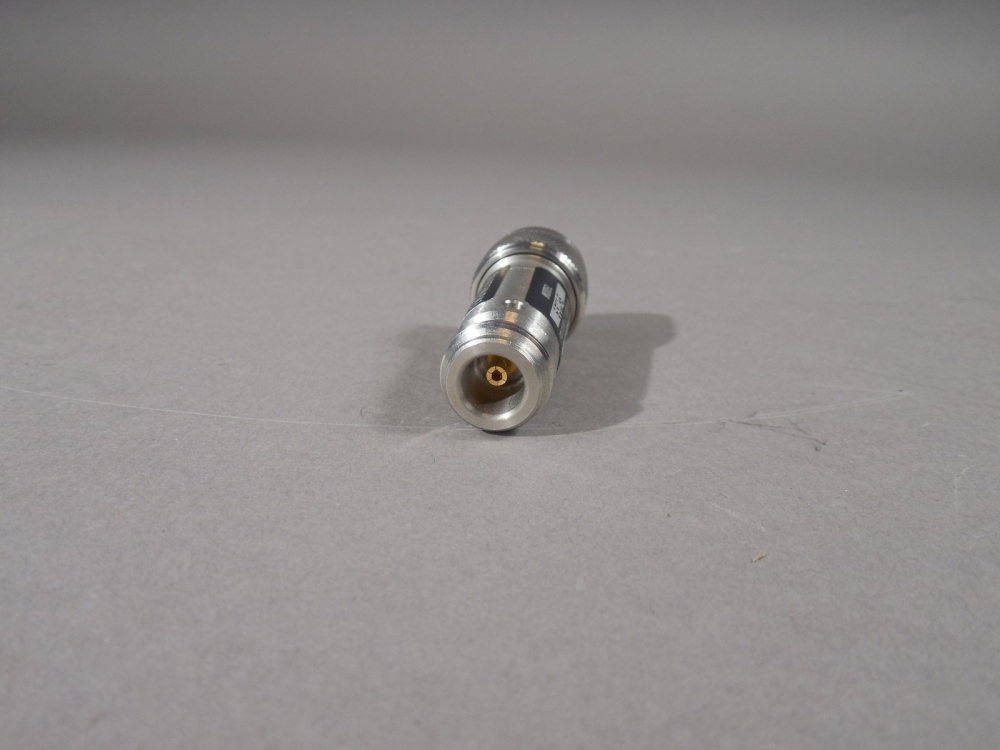

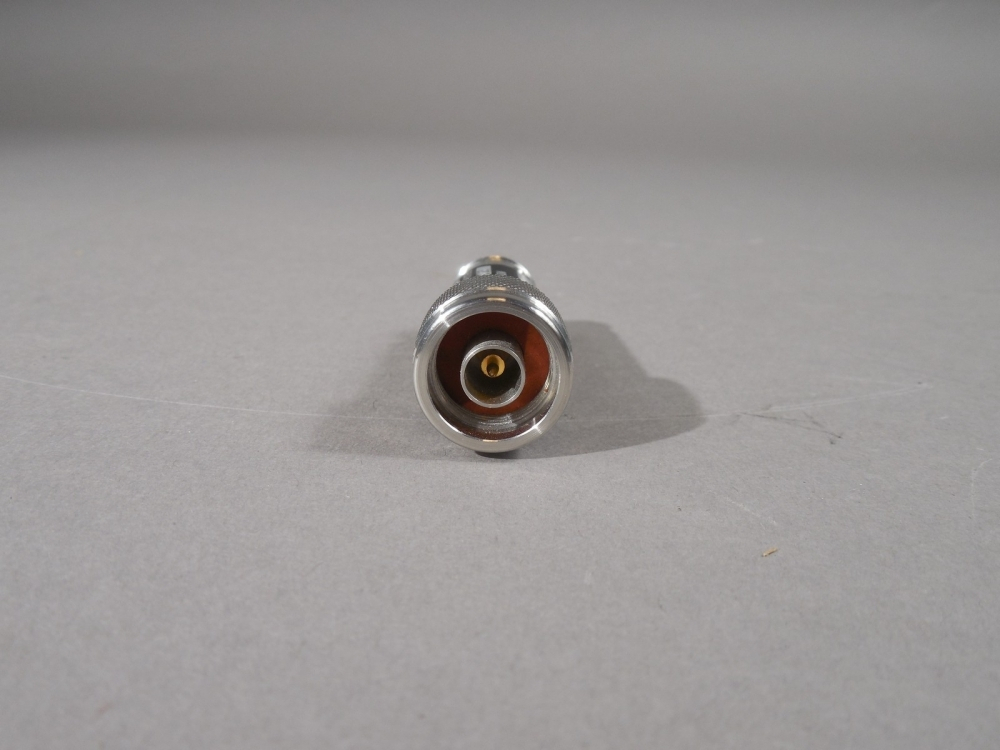

Connection Type per Function Female input and male output
Mounting Method Connector
Terminal Type and Quantity 2 connector
Frequency Range 5.400 gigahertz minimum and 5.900 gigahertz maximum
