New
Servo Instruments
14W3-2069

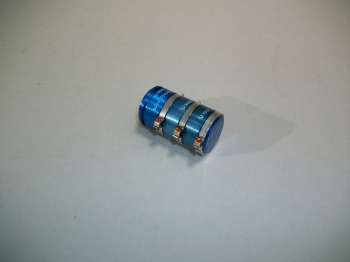

Non Wirewound Precision Variable Resistor
NSN: 5905-00-913-9451
Characteristic Details
Effective electrical rotation in deg angular rotation - 320.0 nominal
Electrical resistance per section - 100.0 kilohms all sections
Actuator travel control feature - Continuous motion
Actuator type - Single shaft
Ambient temp in deg celsius per section at full rated power - 25.0 all sections
Ambient temp in deg celsius per section at zero percent rated power - 150.0 all sections
Body diameter - 0.969 inches maximum
Body length - 1.480 inches maximum
Body style - Cylindrical servo mounted
Mounting method - Clamp ring
Mounting lip depth - 0.0620 inches nominal
Mounting lip diameter - 0.8750 inches nominal
Pilot diameter - 0.7500 inches maximum
Pilot length - 0.0620 inches nominal
Power dissipation rating per section in watts - 2.0 free air all sections
Reliability indicator - Not established
Resistance tolerance per section in percent - -1.000/+1.000 all sections
Rotary actuator travel in angular deg - 360.0 nominal
Section quantity - 3
Shaft diameter - 0.125 inches maximum
Shaft length - 0.244 inches nominal
Shaft style - Round
Standard taper curve per section - A all sections
Temp coefficient of resistance per section in ppm per deg celsius - -20.0/+20.0 all sections
Terminal location - Radially positioned over less than half the circumference
Terminal type and quantity - 3 turret
Undercut diameter - 0.786 inches maximum
Undercut width - 0.0630 inches nominal
Shipped from TN location Located at: P1091 (Q-14W3-2069) on E (KK)
